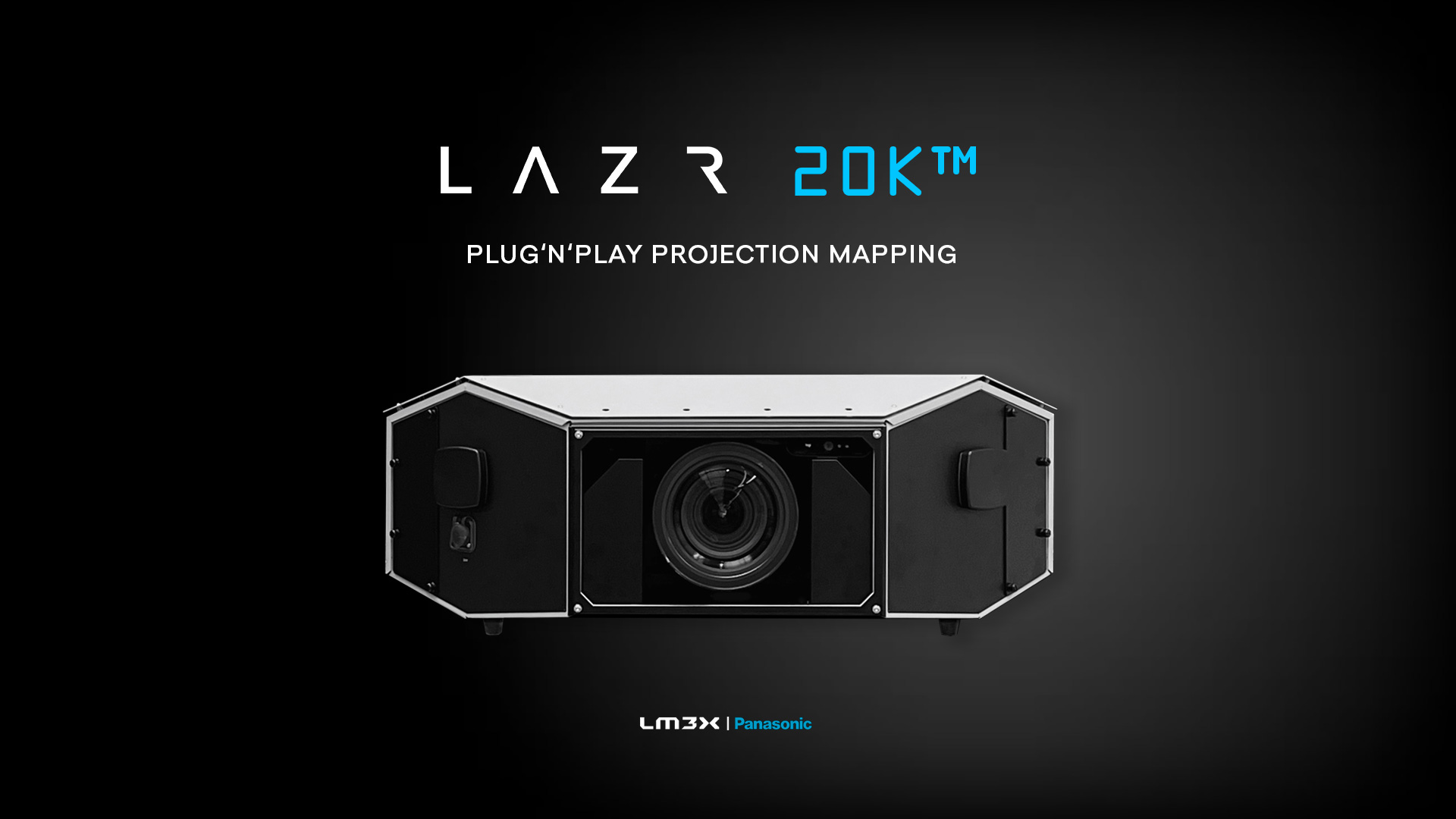

Elevate your outdoor visual experiences with the LM3X LAZR 20K™, our most powerful projector yet. Designed for professional projection mapping, facade lighting, and permanent outdoor installations, this 20,000 ANSI lumens powerhouse delivers unmatched brightness, clarity, and flexibility. Featuring embedded projection-mapping software, interchangeable lenses, and the same rugged, weather-resistant design that LM3X is known for, the LAZR 20K™ is built to transform large-scale surfaces into stunning visual canvases. Ready to shine brighter? Explore the future of outdoor projection today!
Discover how the LM3X LAZR 20K™, a 20,000 lumens outdoor projector, transformed Petra, the ancient city carved into the rock—one of the Seven Wonders of the Modern World— into a breathtaking canvas for projection mapping. This flagship installation showcases the power, precision, and versatility of the LAZR 20K™ platform. Explore case studies and examples. Ready to create your own iconic display? Contact us for a tailored quote today!

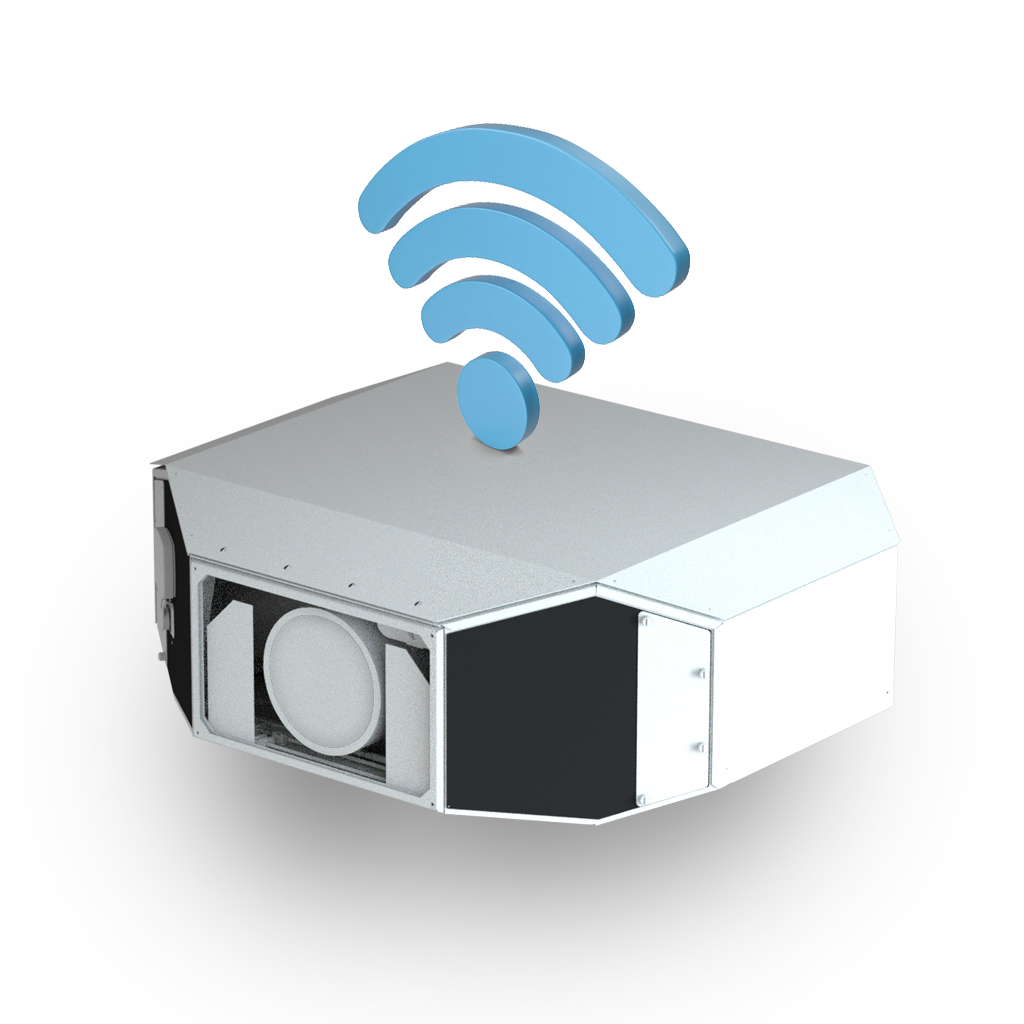

Setting up wired connections between the projectors is not always convenient or possible. LM3X state-of-the-art media system can operate entirely wireless; even edge-blending or stacked projector set-ups can sync entirely wireless. This unique ability enables projects and saves costs.

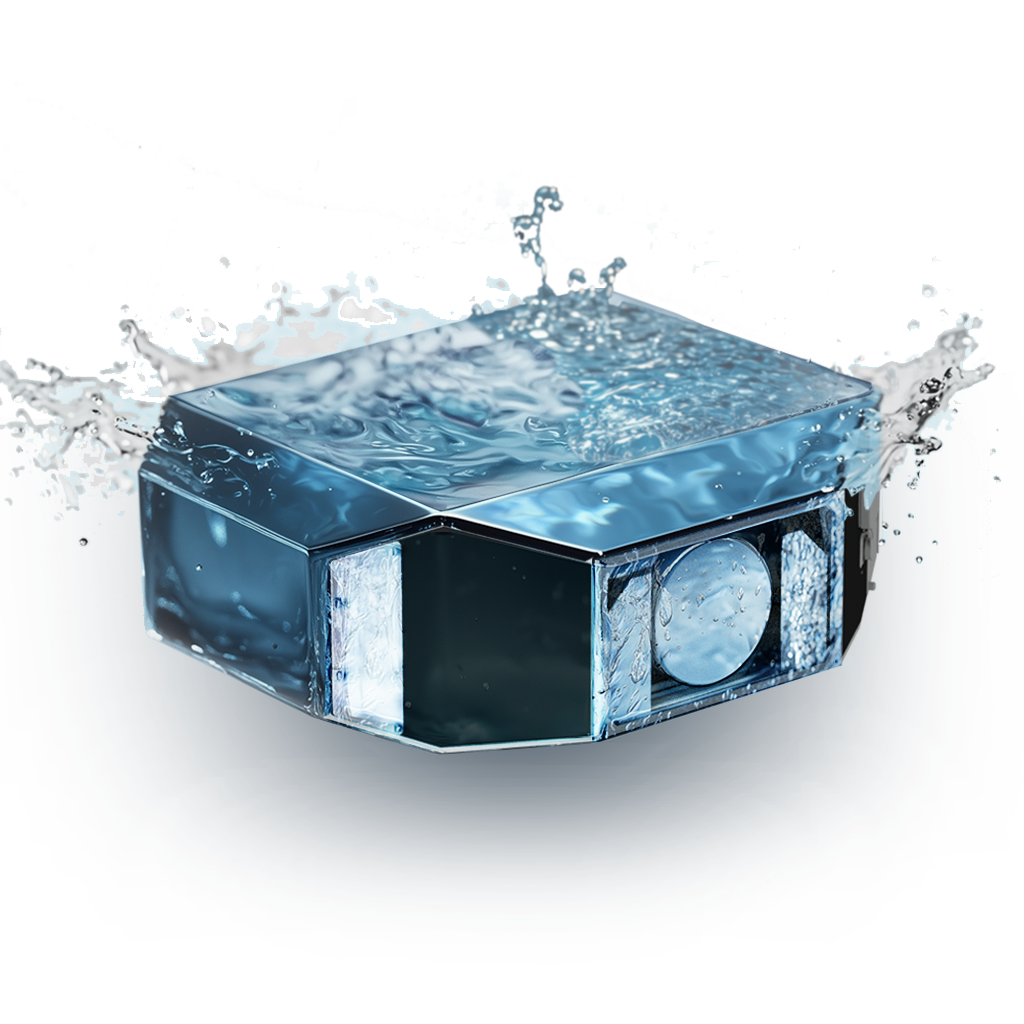

Reliability matters. With LAZR 20K™, you get a 3-year hardware warranty and lifetime software support for outdoor projection installation anywhere on Earth. The aluminium-made outdoor enclosure provides excellent projector protection from all elements in all possible weather situations.

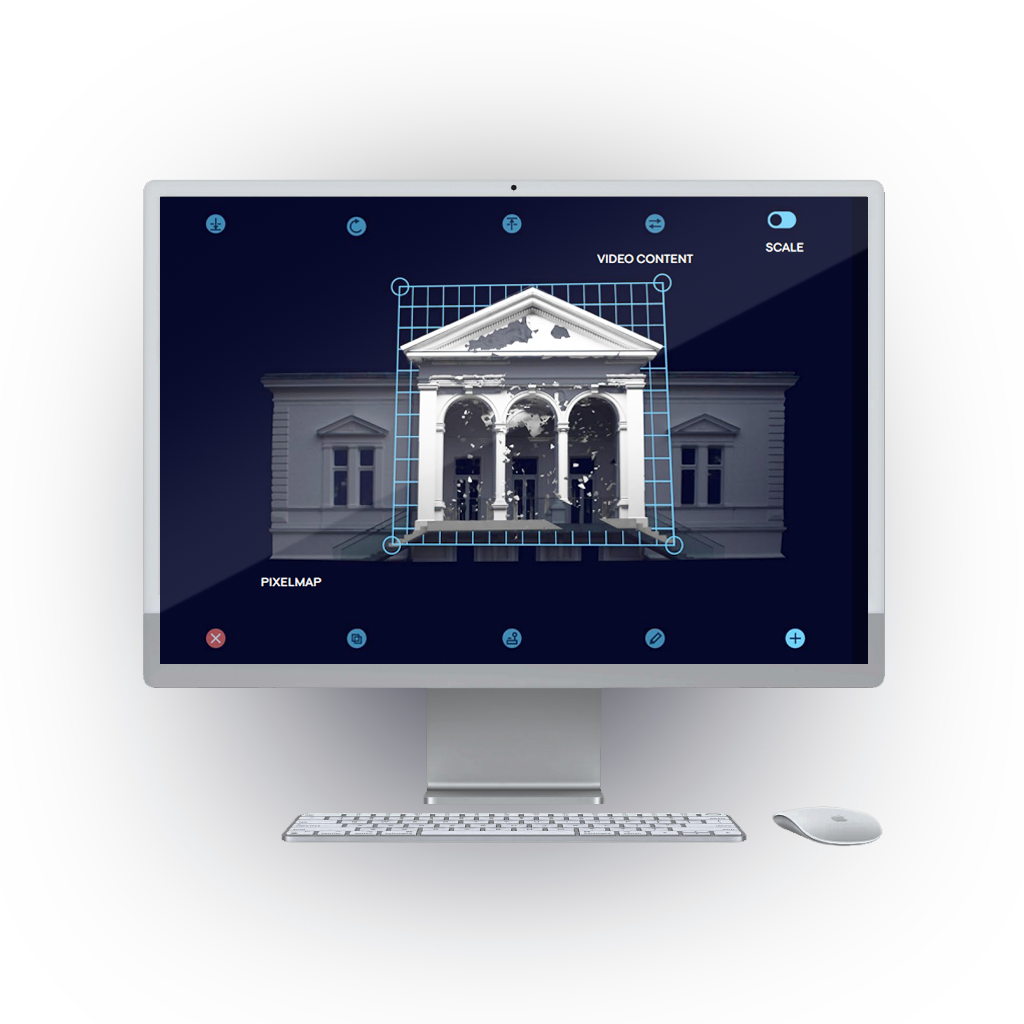

Done the modern way – the Lumiverse™ control studio is available remotely over the internet in a web browser. Simple media management and powerful projection mapping tools in your hands, with human support.

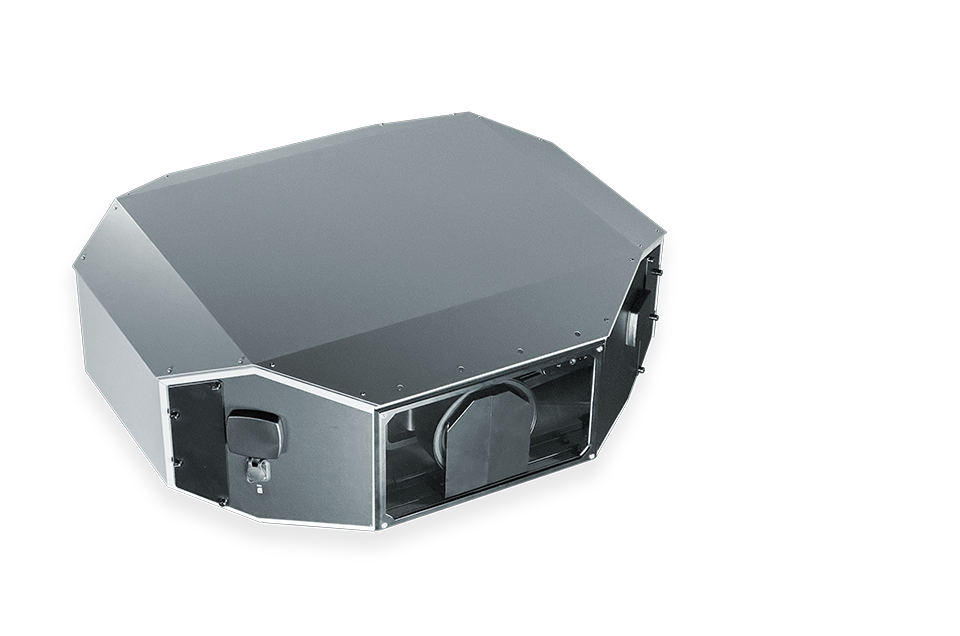

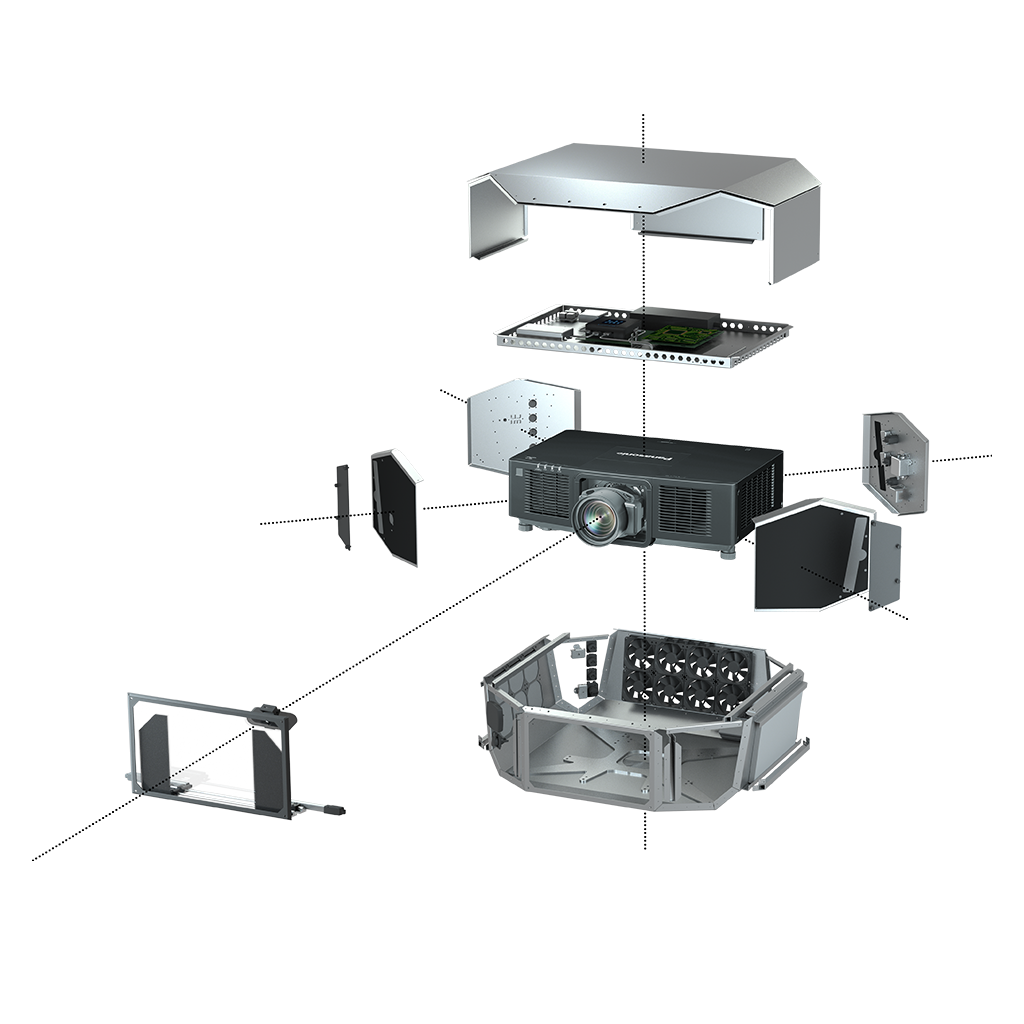

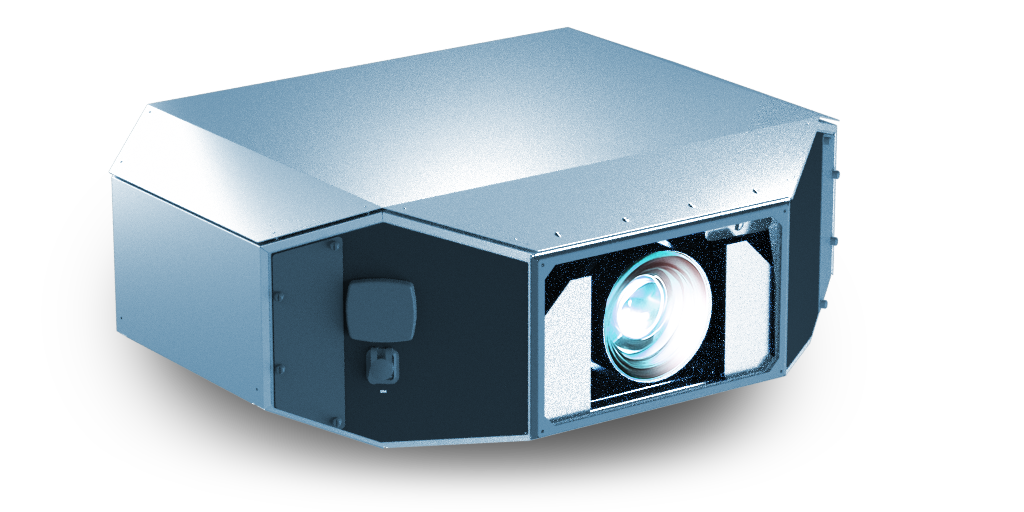

LM3X LAZR 20K™ is a unique outdoor projector enclosure that includes the Lumiverse™ wireless projection-mapping media server with state-of-the-art Panasonic PT-MZ laser digital projector. You can buy a complete package from us, or you can order the LAZR 20K™ without the projector and build in your own Panasonic PT-MZ projector.

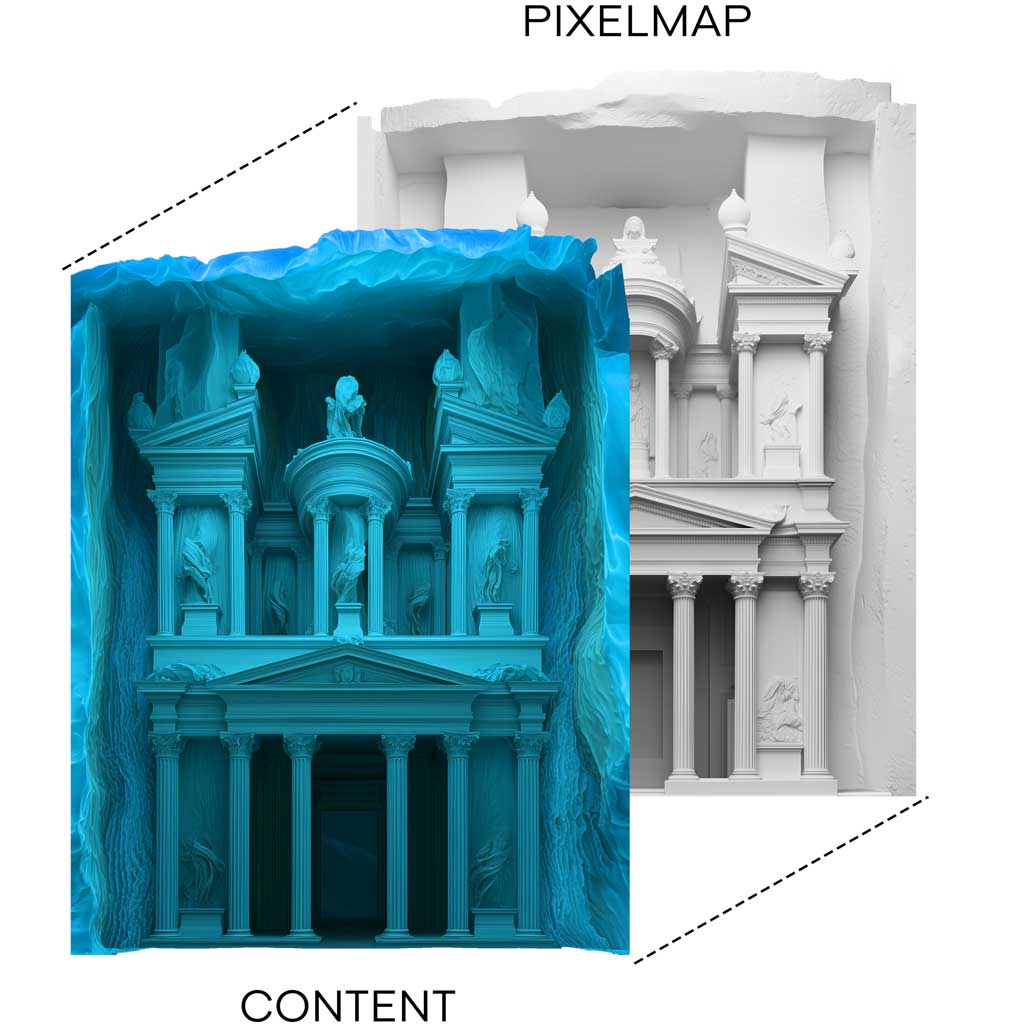

The embedded scanner outputs the “pixelmap”, which you can upload to Midjourney AI for effortless “prompt to projection mapping” content creation. (In Midjourney, use the “retexture” function.) Works like a charm for projector groups as well, thanks to the 20K™’s embedded image blending software.

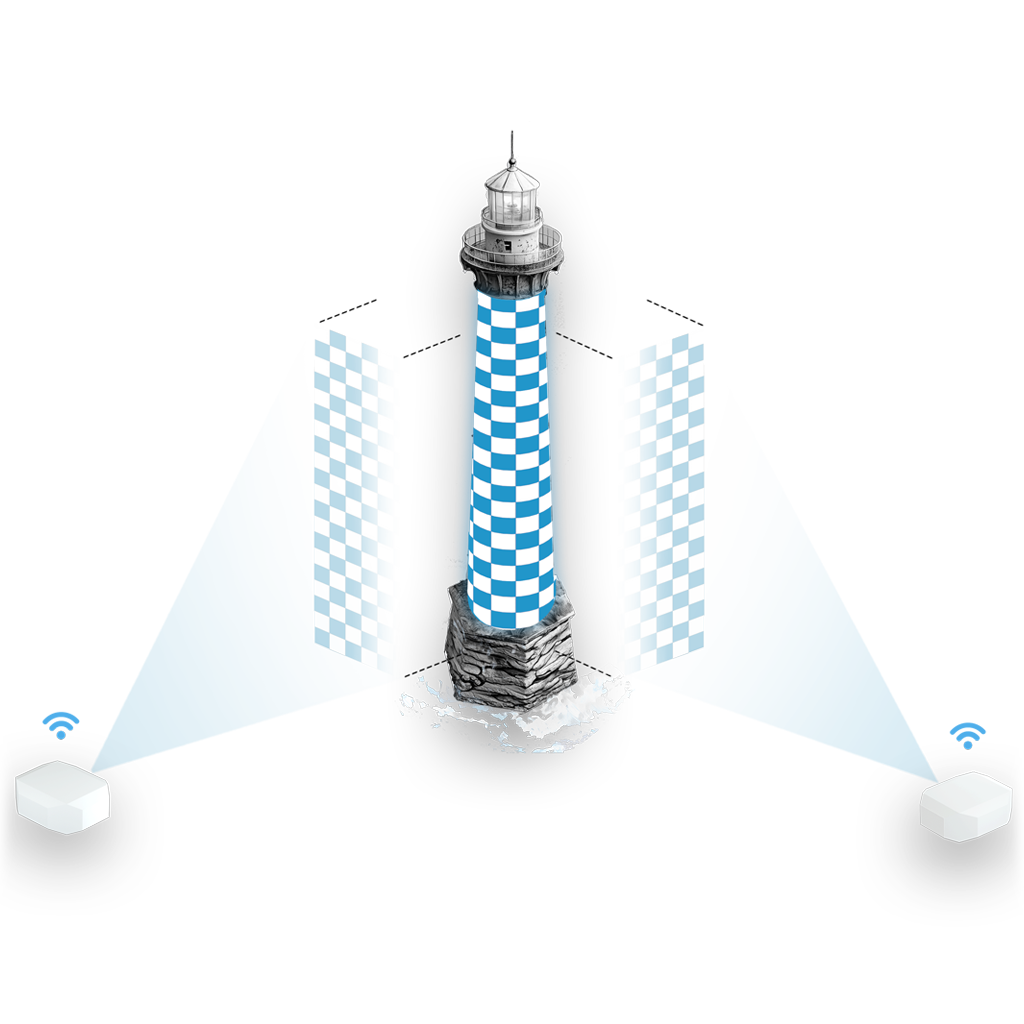

Enables projecting an evenly sharp image onto architectural objects with varying features at different projection distances, even from a scattered group of projectors. For example, if there is a balcony on a facade, the back wall of the balcony is at a different projection distance from other surfaces of the building. The embedded multi-layer image blending handles these kinds of architectural variability very well and provides an evenly sharp picture on all surfaces.
Designed for permanent installation reliability: When power lost, the device goes to sleep. The device reboots to operation mode after the power supply is restored.
| Brightness | 20,000 ANSI lumens |
| Resolution | WUXGA (1920×1200) |
| Light Source | Panasonic PT-MZ20K LASER 3LCD |
| Lens Options | Interchangeable, Panasonic PT-MZ 300 – 800 lens range compatible |
| Throw Ratio | 0.55–7.40 full range (varies by lens) OPEN CONFIGURATOR |
| Projection Area | Up to 24 x 15 meters (78′ x 49′) per unit, stackable |
| Ingress Protection | IP43 (projector body), IP68 (connectors) |
| Connectivity | HDMI, HDBaseT, 4G-LTE, LAN, Wi-Fi, DMX |
| Weight | 50 kg / 110 lb |
| Operating Temperature | -45°C to +45°C / -49°F to +113°F |
| Software | Lumiverse™ app (pre-installed) |

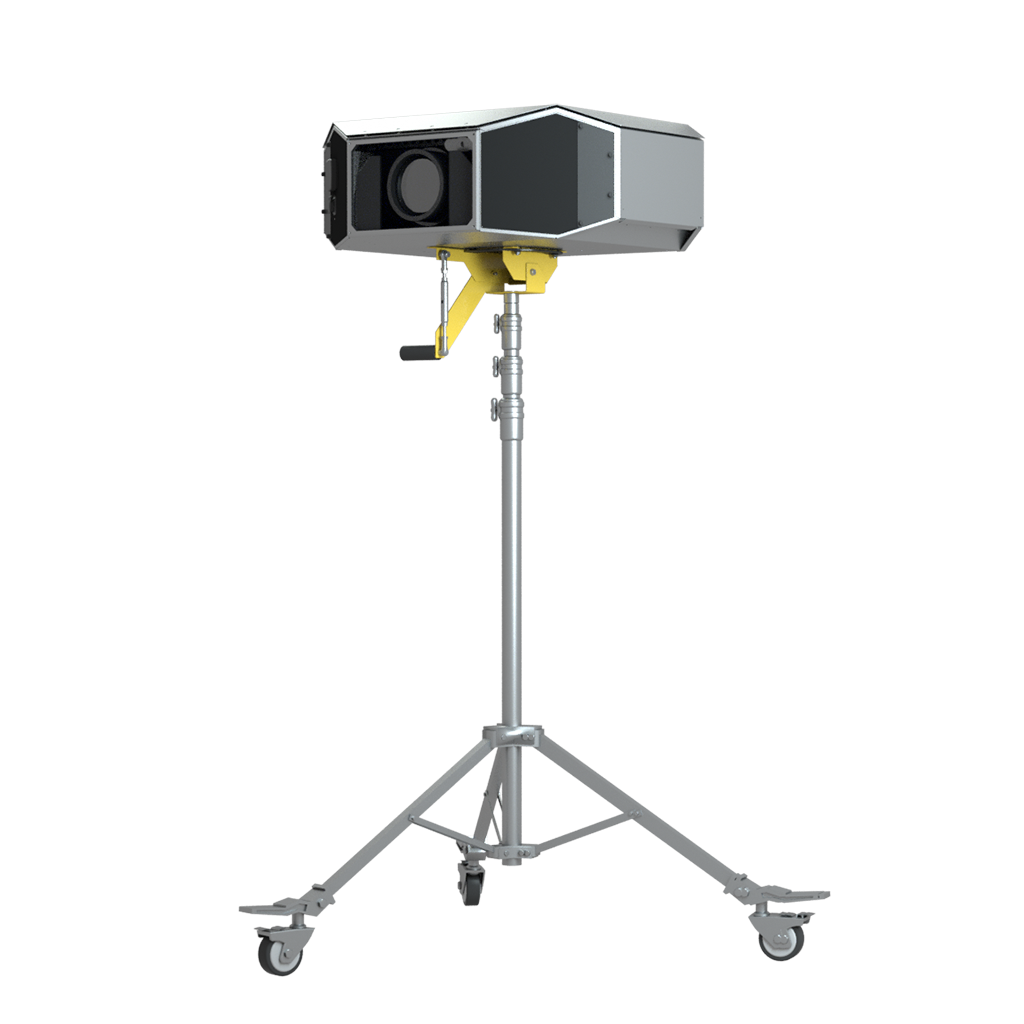

| Accessories | Compatible with 360 Bracket™, Urban Pole™, Wall & Pole Bracket™ |
